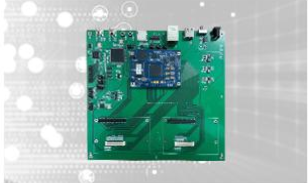

Video platform includes : FPGA core board + Video mother board + 96 board with MIPI compatible / video interface structure.
Video board interface : USB, MicroSD & GbE.
Video board includes two channels programmable power: Vout 600mV to 3.775V, 400mA.
Video board includes 3 channels programmable clock with output from 9.72MHz to 1250MHz. Support multiple single end /differential signal standard.
Current 96 board supports 1 channel/4 Lane MIPI input (display application), 1 channel/4 Lane and 1 channel/2 Lane MIPI input (CCTV camera application).
